Line marking

RM21 Marker and Mower

RM21 Marker and Mower

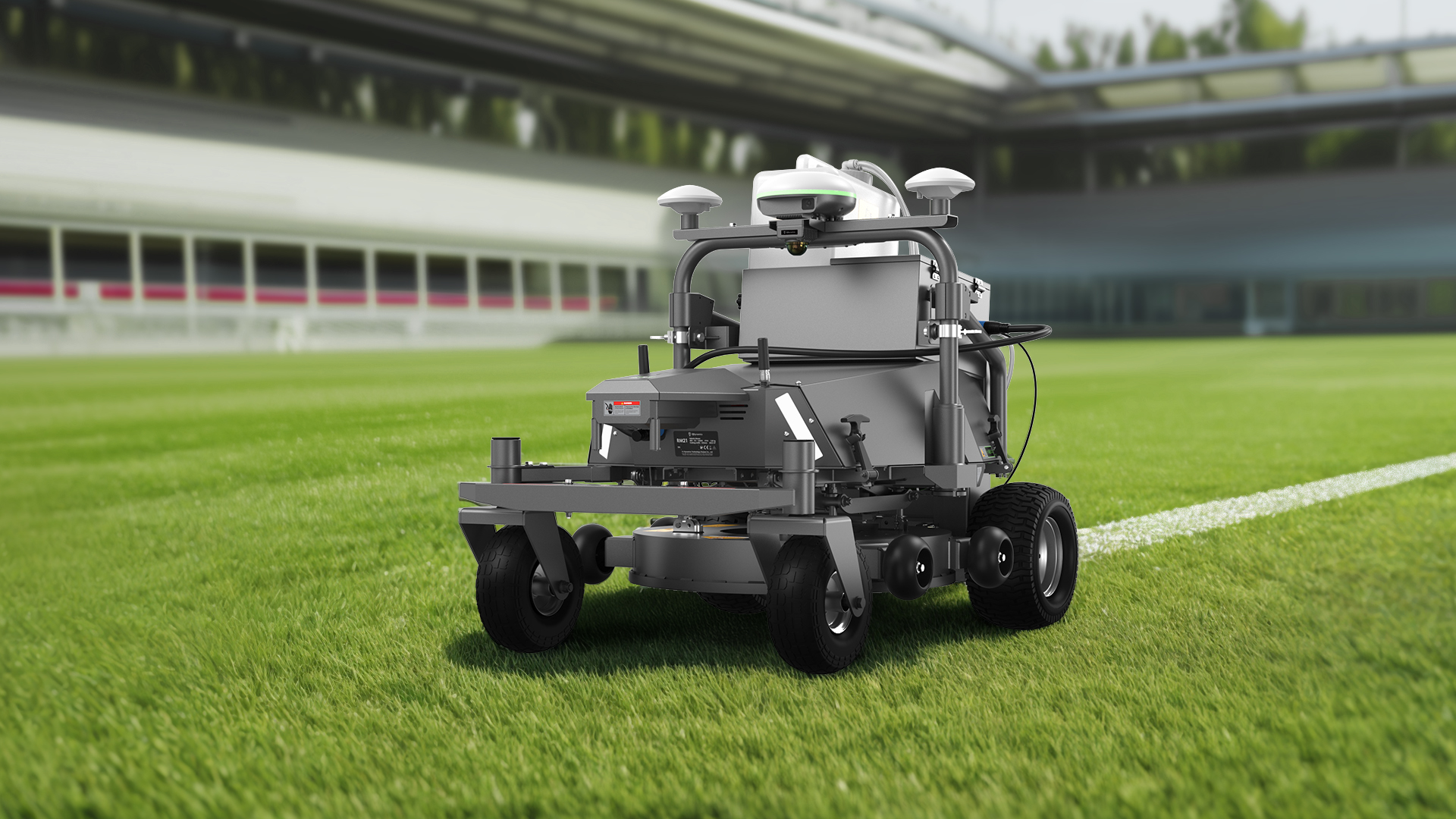

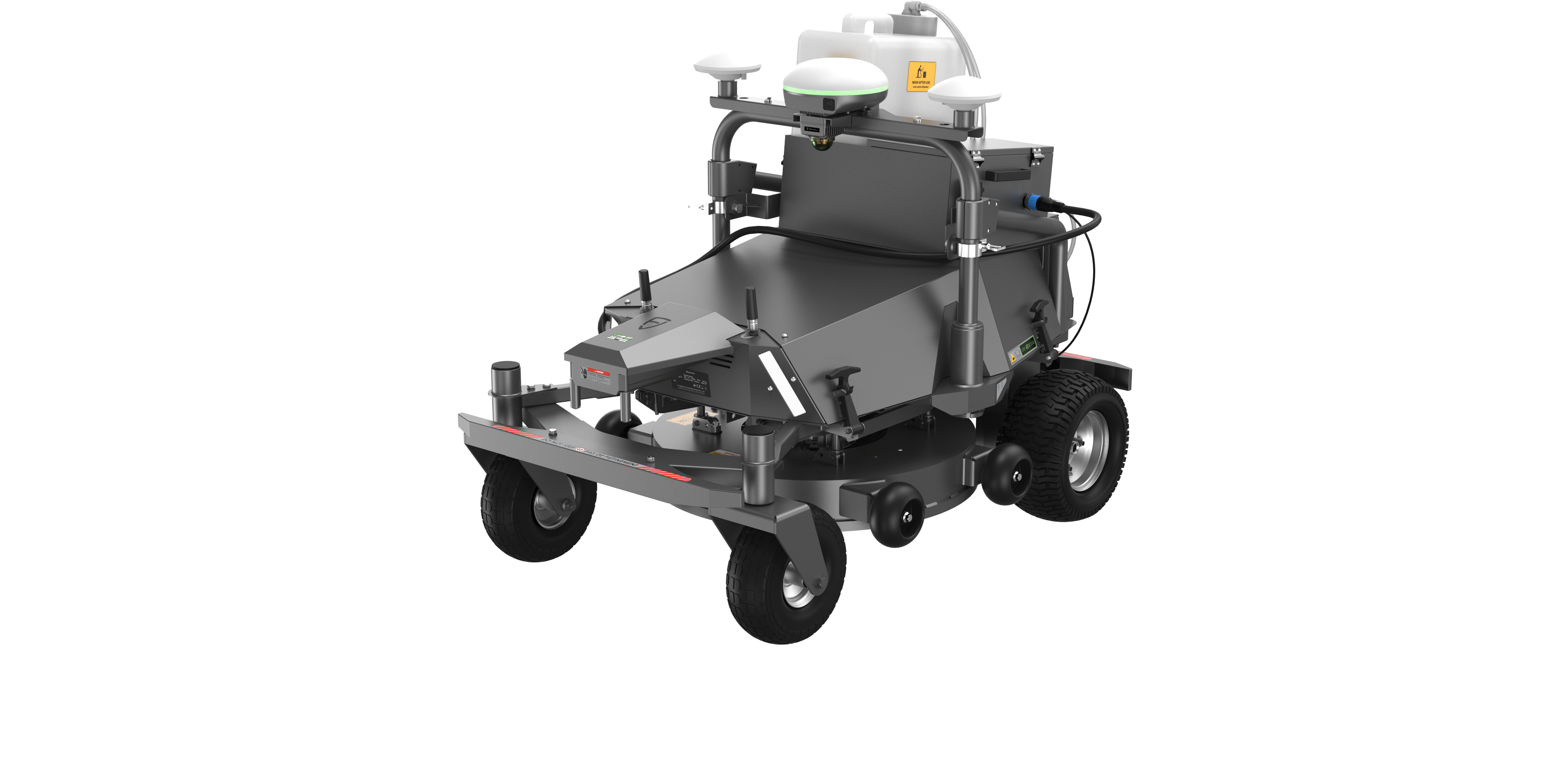

The RM21 Combo includes a 25” rotary mower, line marker, charging dock, bespoke tablet with all software plans, and a Radio RTK station for precision over marking. It can also be supplied as just a mower or line marker, with optional attachments included a grass/leaf collector/hoover and dispenser, and brushes for different tasks that simply attach to the main RM21 unit.

Mowing Redefined for Precision and Stability

The FJD RM21 Fully Autonomous Lawn Mower is the perfect solution for professional lawn care providers who demand efficiency and reliability. Designed for multiple scenarios, including sports fields, golf courses and orchards, the RM Series features an intelligent control system, pure electric drive, and a large-capacity battery to maximise mowing efficiency, save time, effort, and cost. The pure electric design eliminates oil leaks and grass damage.

Protection meets innovation

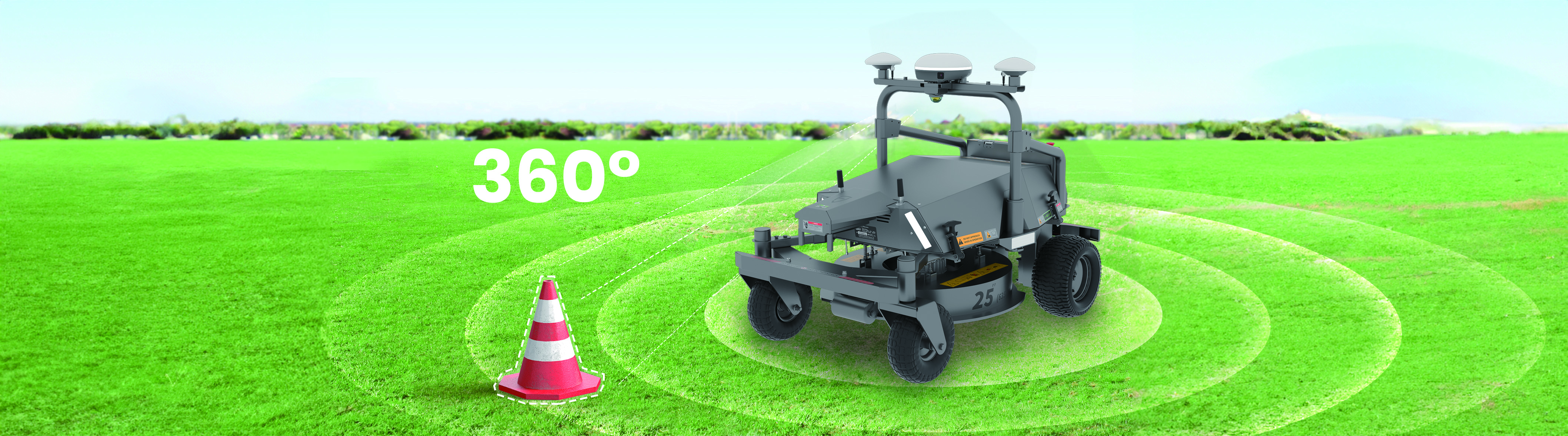

360° Real-time obstacle detection

Uses LiDAR to detect surrounding obstacles without blind spots, with three distance modes to choose from, ensuring safety.

Comprehensive protection

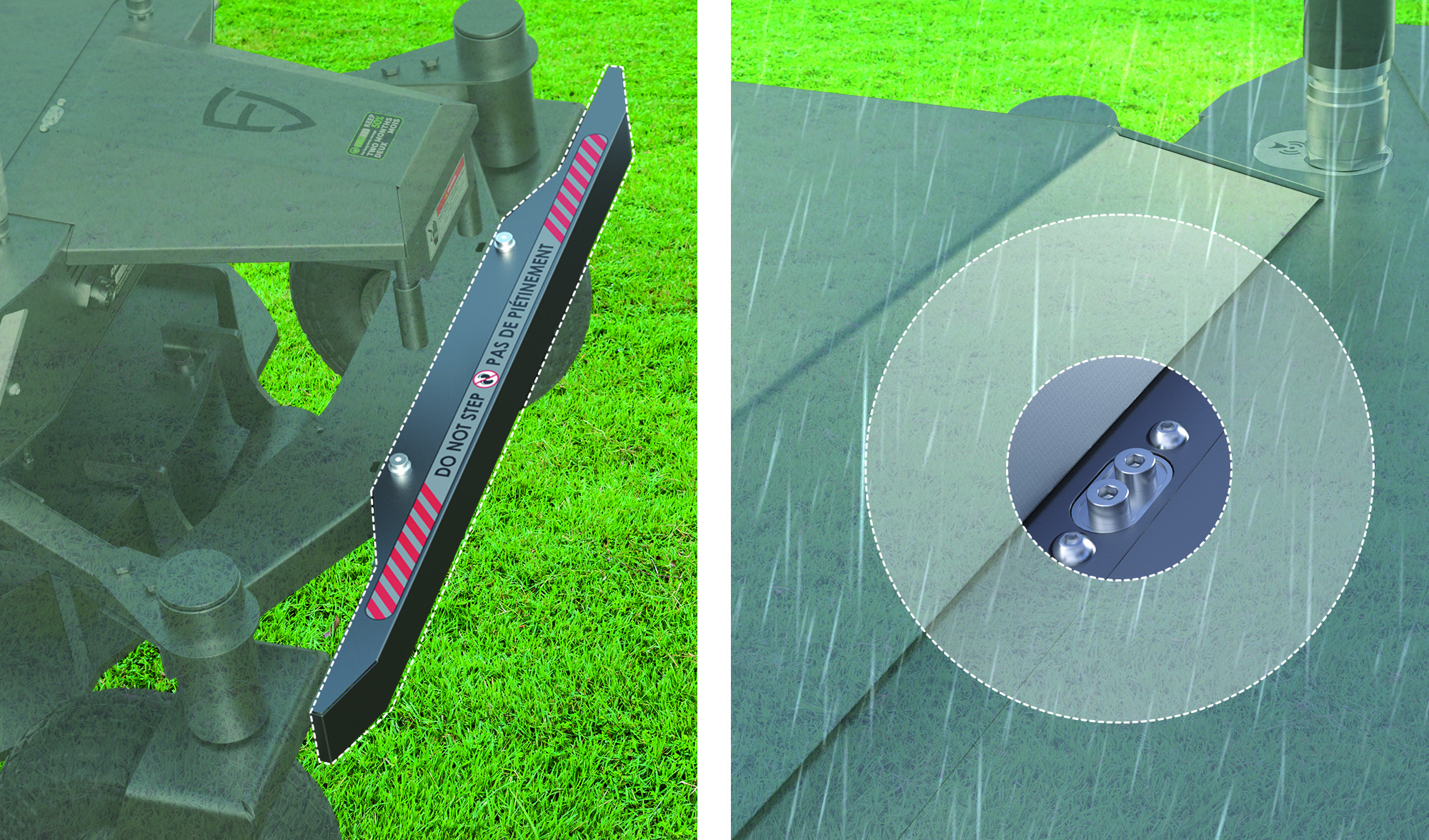

Our mower safeguards itself with collision bumpers and rain monitoring. We've got every angle covered for a safe and plawless operation.

Make mowing easier and smarter

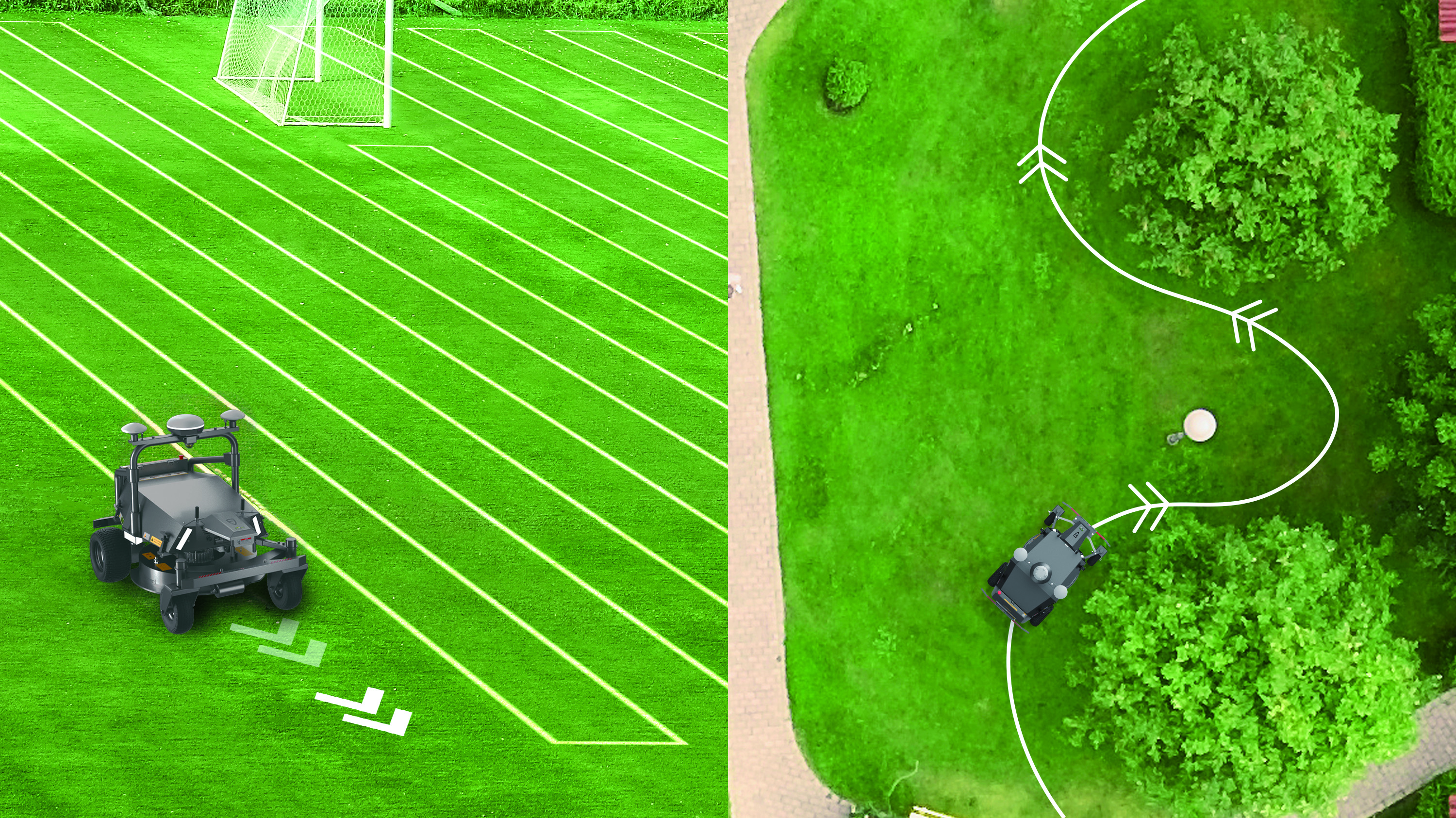

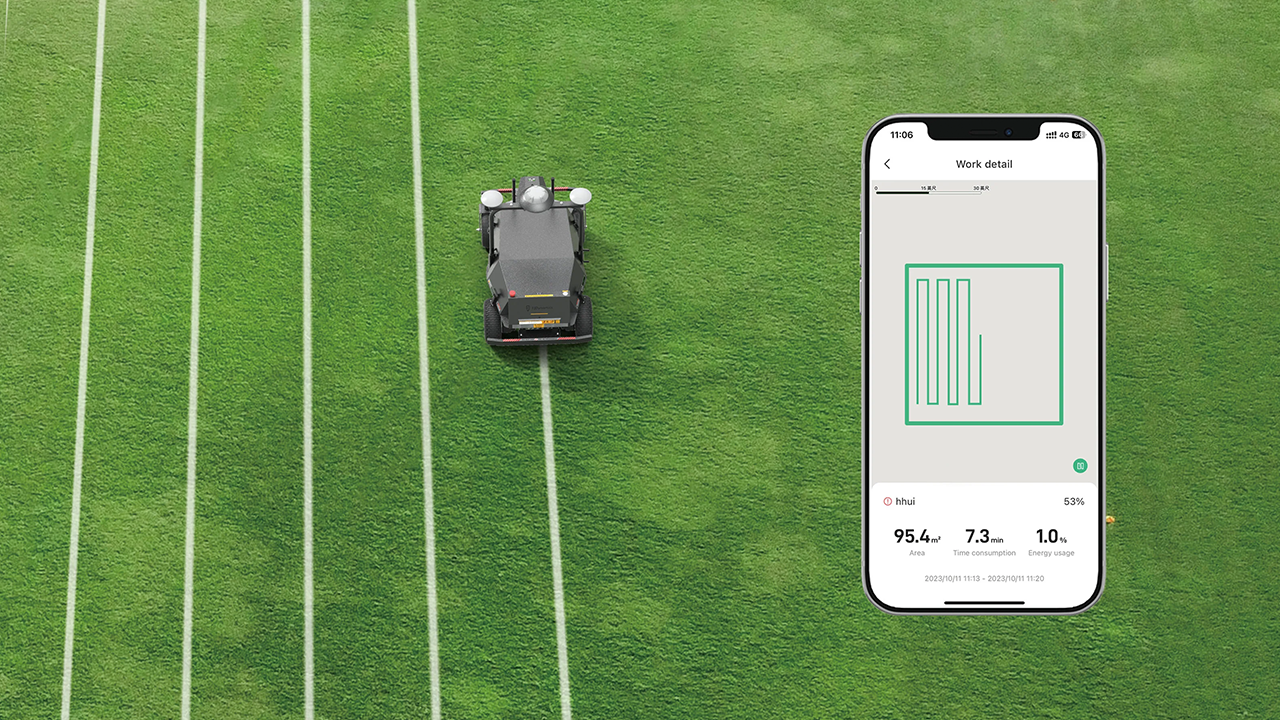

Our lawn mower app makes mowing easier and smarter by giving you the power to control your mower anytime, anywhere.

Reliable performance

No more battery anxiety

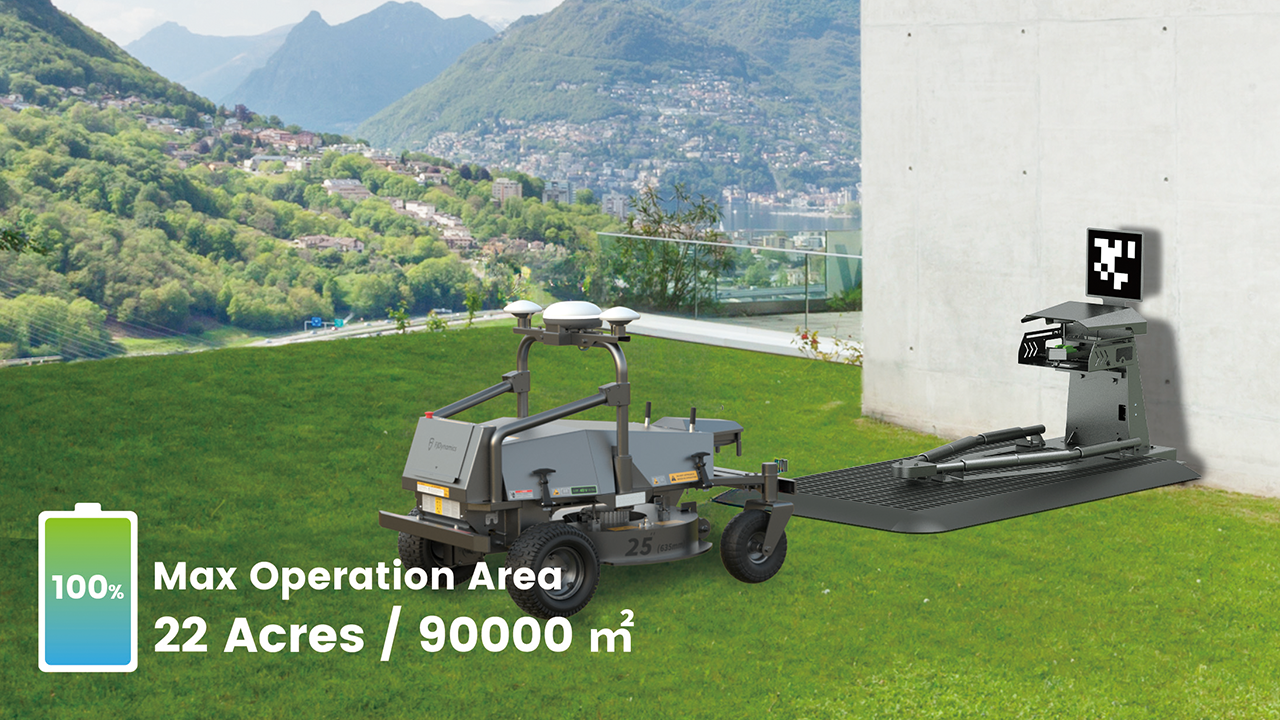

Automatically returns to the charging station for charging when the battery is low, without manual interventions, significantly improving work efficiency.

No more worry about climbing hills

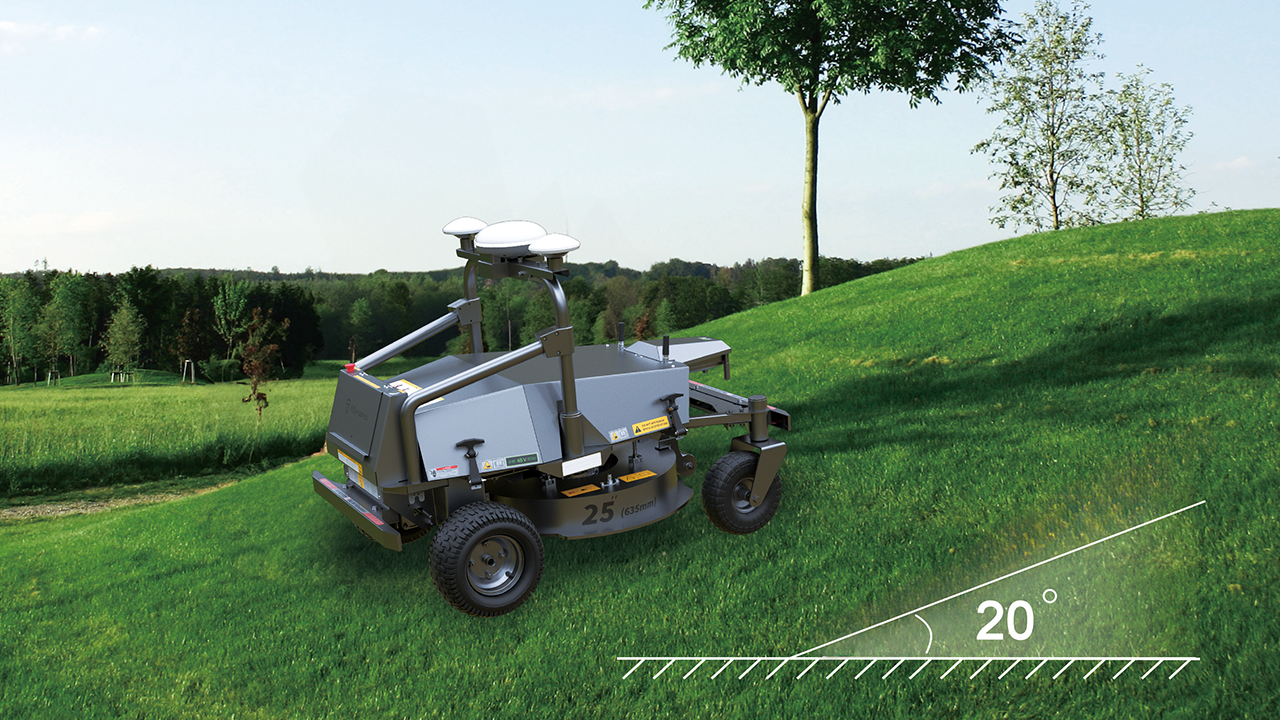

Climbing ability up to 20°, can handle more complex and changeable terrain.

Suitable for various types of surfaces

  • Park lawns

  • Sports fields

  • Farm lawn

  • Orchards

  • Golf courses

  • Landscaped lawns

Specifications

Weight

(with 2 batteries)

375lb / 170kg

Ground speed

0-3.7mph / 0-6km/h

Dimensions

L52"(1330mm) x W34" (857mm) x H40"

(1012mm)

Max operations area per three days

22acres / 90,000m²*

Number of blades

1

Max operations area per charge

3.2acres / 13,000m²*

Cutting height

0.8-5"/ 20-127mm

Average working time

5 hours

Cutting width

25" / 63cm

Maximum gradeability

≤20°

Battery capacity

4kWh

Charging time

5 hours

Battery voltage

48 VDC

Waterproof

IPX4

*Working area capacity is variable due to grass type, soil, cutting height and slope.

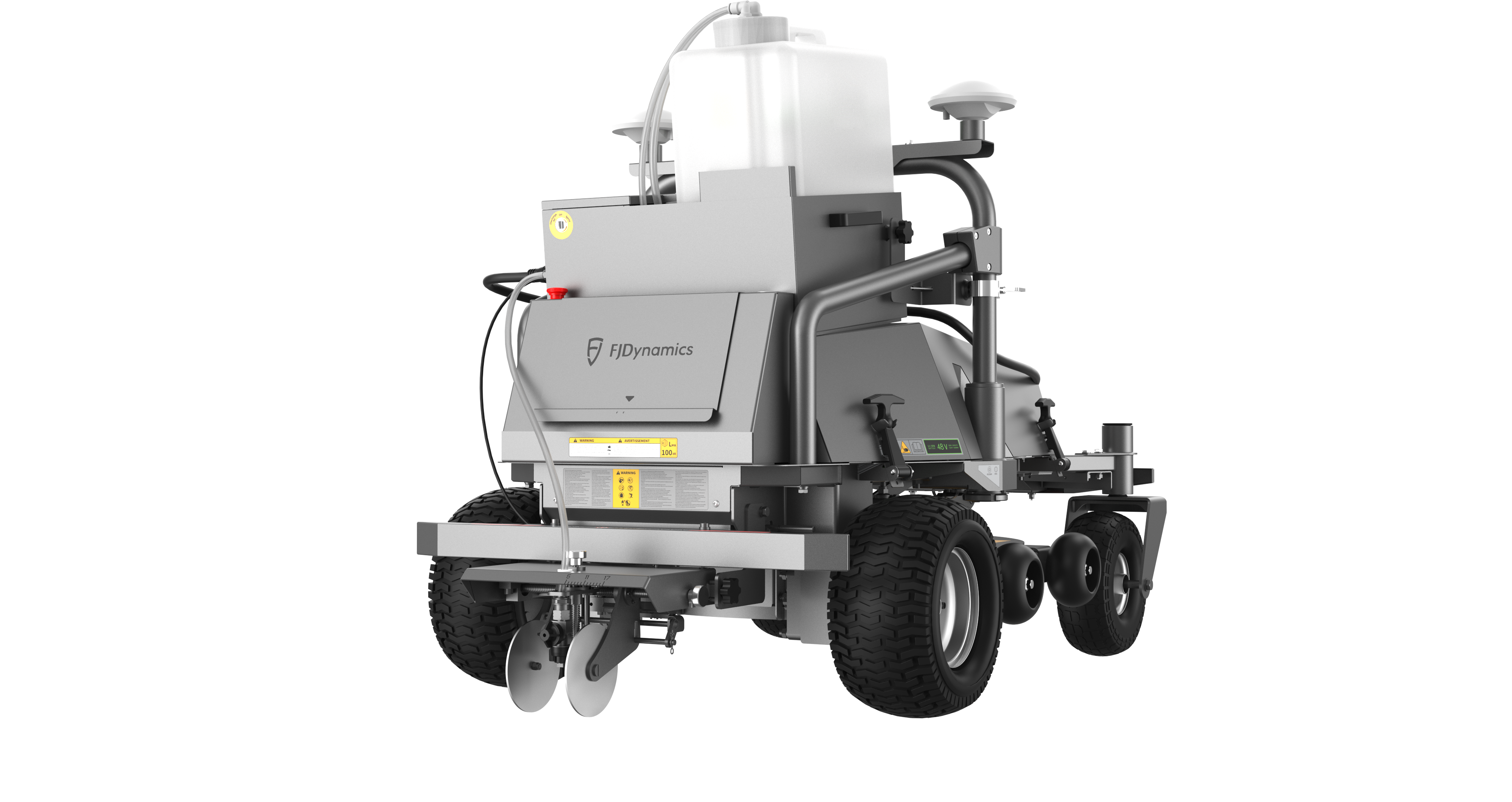

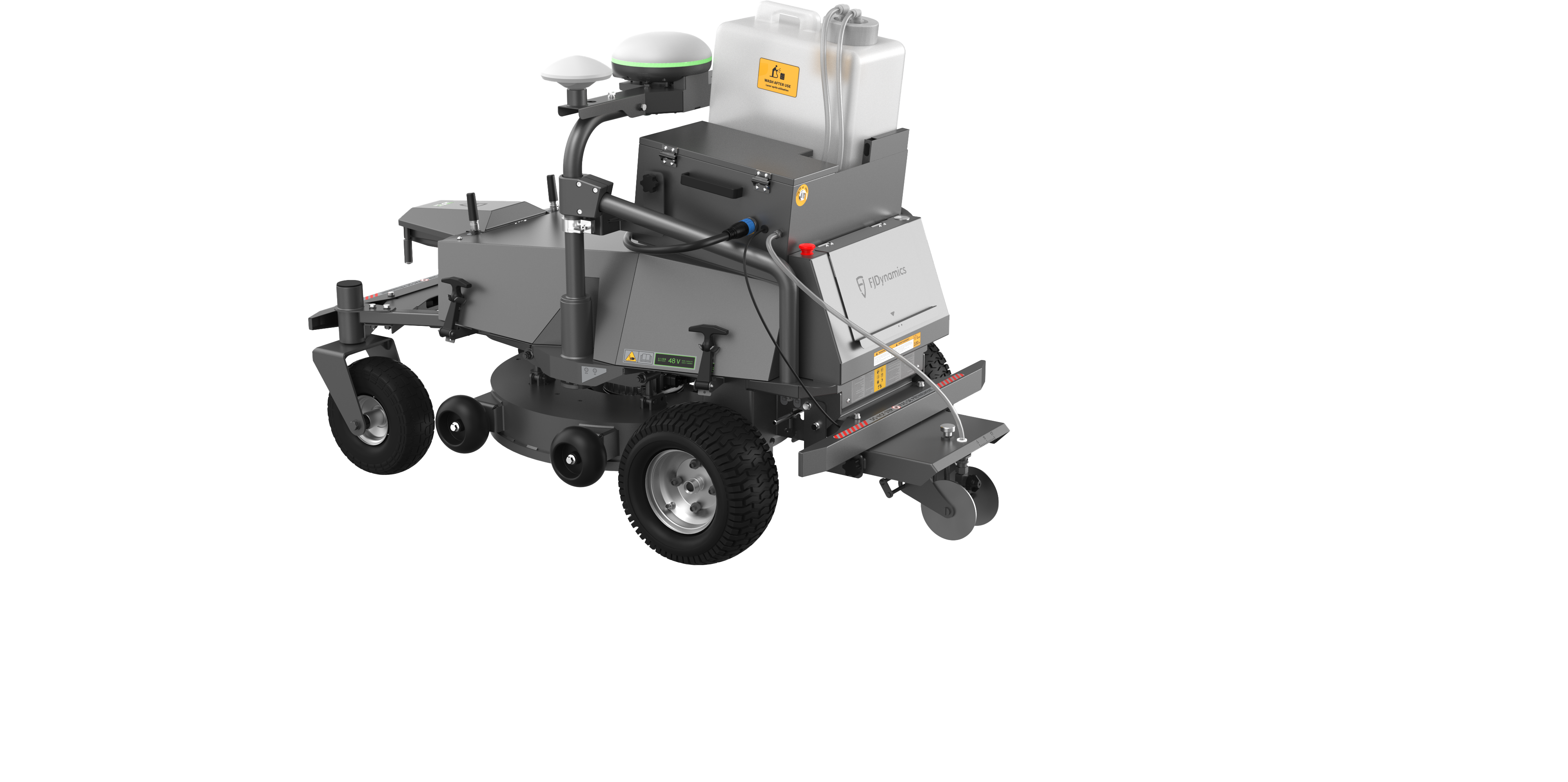

Line Marker Kit

Make line marking easier

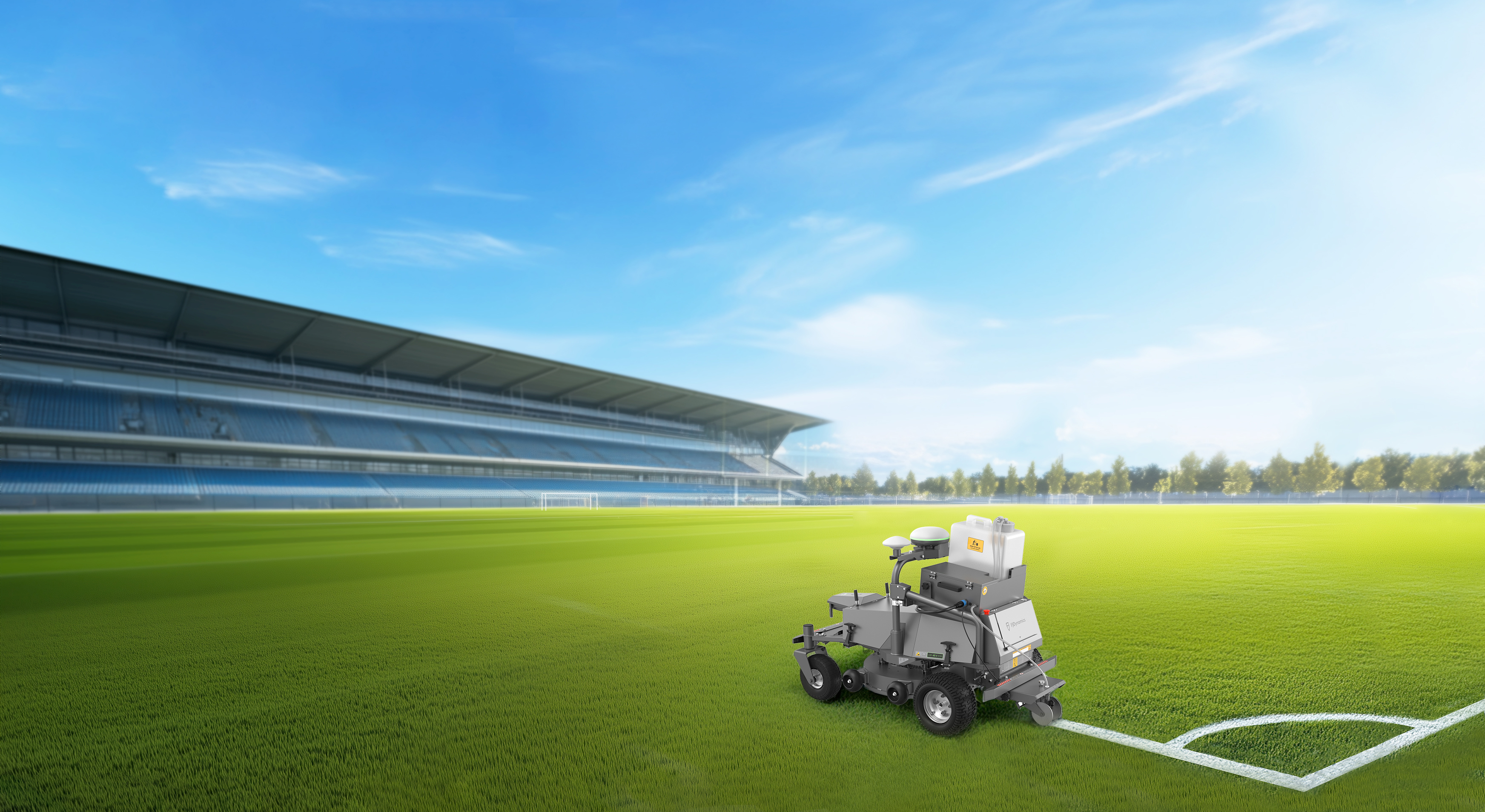

Perfect sports field lines don't happen overnight. It takes high precision marker to make your field the best it can be. The LM01 comes standard with a top-class navigation system that makes precise lines marked in minutes with an ultra-long battery life. With customisable maps and lines, this marking robot lets you get perfect results for all your sports pitches including football, rugby, lacrosse, American football, field and track, rounders, softball and baseball.

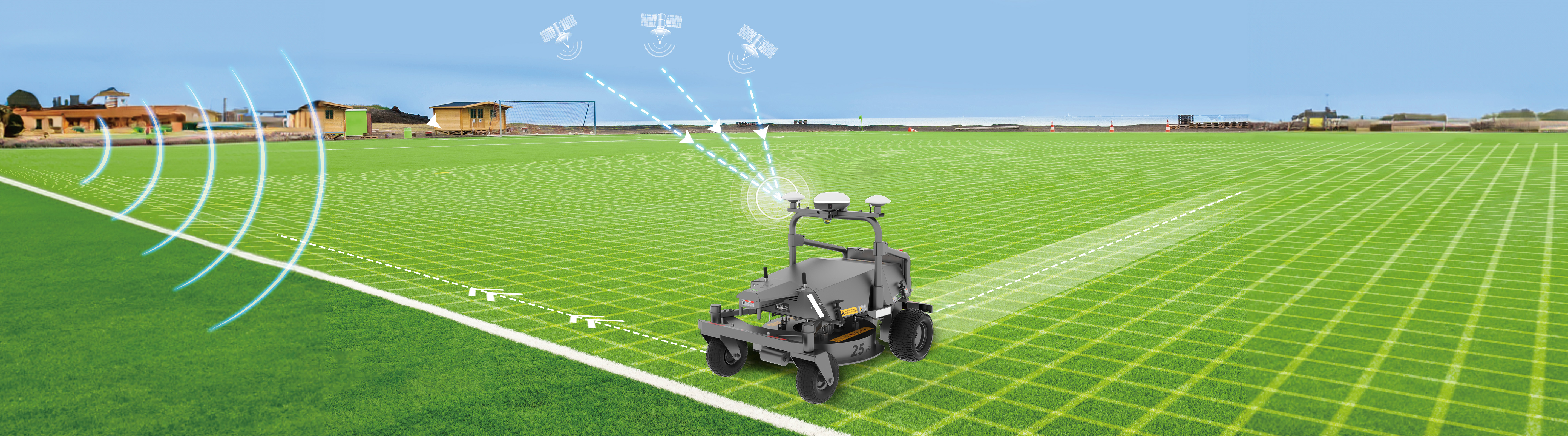

High precision from start to finish

A local base station provides stable signals to ensure every line is marked precisely on point.

  • Achieve the highest possible marking accuracy

  • Reduce the risk of signal drift with super stability

  • Save money by eliminating the need to purchase additional NTRIP accounts

Save costs, increase efficiency

  • Save labor costs by up to 90%+

  • Reduce paint consumption by about 50%+

  • Work longer, mark 20 standard football fields (11v11) per full charge

  • Cover various sports fields; from football, rugby, American football, hockey to tennis, and more

Intuitive interaction and simple operation

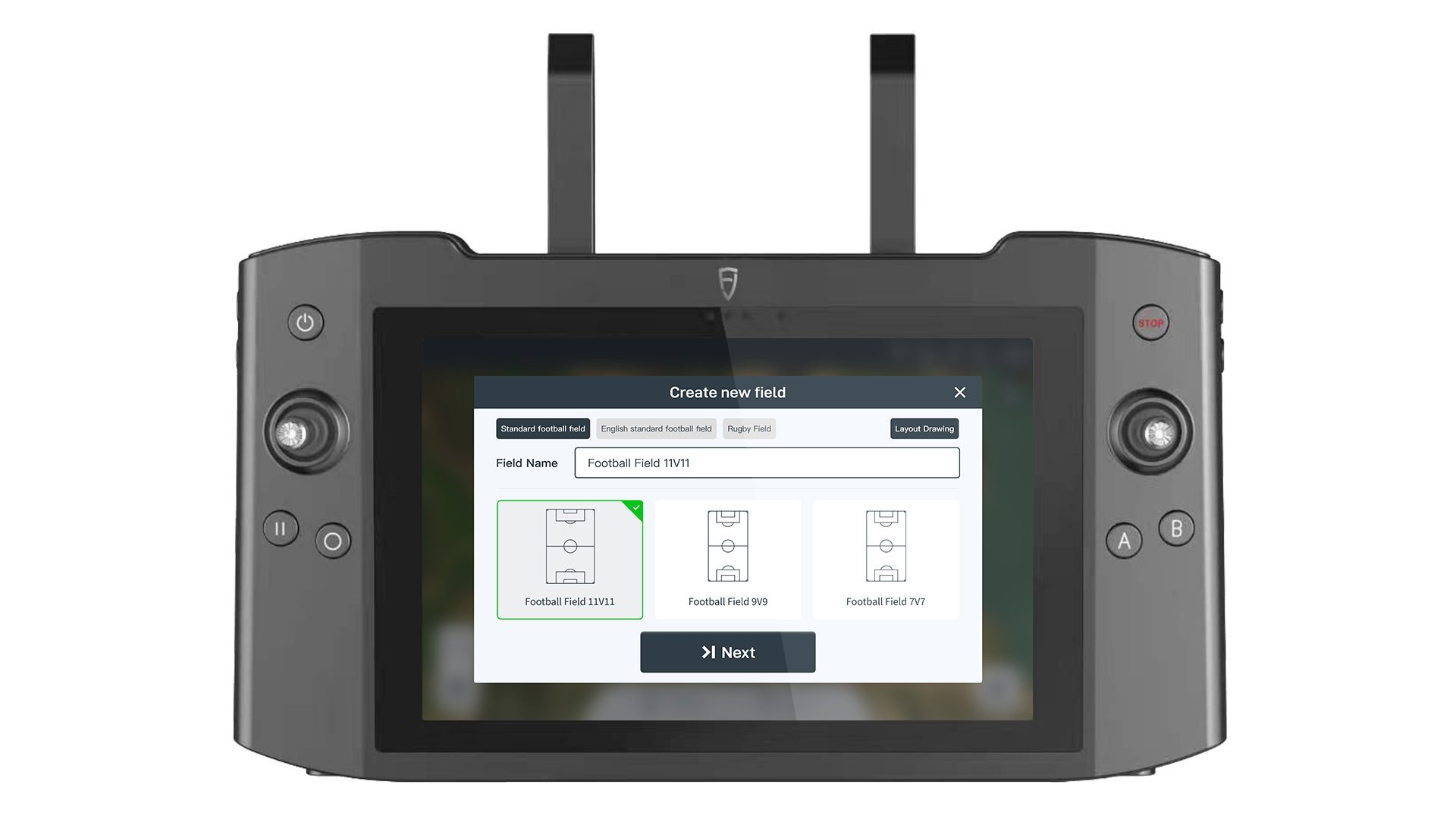

  • Offer an array of built-in marking templates for quick and easy development

  • Support multiple map creation methods to meet different marking needs

  • Identify the starting point automatically for marking without manual interventions

  • Resume marking from where is left off for continuous workflow

Safe and reliable

Provide dual protection of 360° laser radar monitoring and physical anti-collision, eliminating your safety concerns about unmanned marking.

Specifications

LM02 weight

(no blade disc)

157kg

Rated voltage

48 V DC

RM21+LM01 weight (with blade disc)

187kg

Rated power

150 W

Speed

2km/h

Rated current

3 A

Paint capacity

25l

IP Rating

IPX4

Marking width range

5-17cm

Est marking time per full charge

5-6 hours

Nozzle height

3-8cm

Working temperature

5-35°C

Optional accessories include Grass Collection Kit - developments on going for further additions

Product Video

Product Information

SKU
232300
